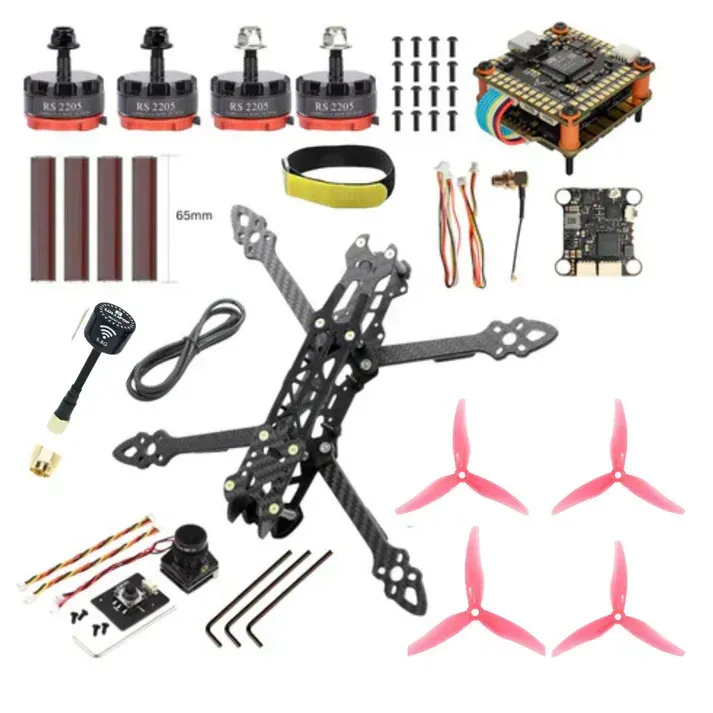

5 inch 225mm carbon fiber Analog FPV Drone Kit

Material: Constructed from high-strength 3K carbon fiber for a high stiffness-to-weight ratio.
Wheelbase: 225mm (diagonal motor-to-motor distance).
Arm Thickness: 5mm, providing significant mechanical strength to withstand high-speed crashes.
Mounting: Supports both 20x20mm and 30.5x30.5mm stack mounting patterns for the flight controller and ESC.
Weight: Approximately 102g to 130g depending on the specific hardware and TPU parts used.

Type: High-performance "Race Spec" brushless motors designed for rapid acceleration.
KV Rating: 2300KV (RPM per volt), optimized for 4S LiPo battery setups and 5-inch propellers.
Magnets: High-strength N52 Neodymium magnets for maximum torque.
Cooling: Features an active self-cooling design (fins) that can reduce operating temperatures by up to 30%.
Bearings: Uses premium Japanese NMB bearings for smooth and stable operation.

Flight Controller: Typically an F4 or F7 (e.g., F405/F722) running Betaflight firmware, featuring an integrated OSD (On-Screen Display) and barometer.
ESC (Electronic Speed Controller): A 4-in-1 BLHeli_S or BLHeli_32 ESC, usually rated between 30A and 60A to handle the high current draw of the RS2205 motors.

Camera: A high-resolution Analog FPV camera (such as a RunCam or Caddx Ratel) with a 2.1mm or 1.9mm lens for a wide field of view.
VTX (Video Transmitter): A 5.8GHz analog transmitter (e.g., TX800) with adjustable power levels (up to 800mW or more) for long-range and clear signal penetration.
Antenna: A 5.8GHz circular polarized antenna (often a "Lollipop" style) for consistent video transmission.

Propellers: 5-inch tri-blade propellers (e.g., 5045 or 51466) designed for high-thrust freestyle maneuvers.
Receiver (RX): Typically an ELRS 2.4GHz or FlySky receiver for low-latency control.
Hardware: Includes M3 standoffs (often 25mm), YFS 12.9 grade steel screws, battery straps, and a Lipo silicone anti-slip pad.
Power: XT60 male connector for battery connection, compatible with 4S (1500mAh) to 6S (1150mAh) LiPo batteries.
